TRANSMISSION REBUILD: BEARINGS, OIL SEALS / MORE – SAMURAI 88.5′-95′

General Information

New in the Original Packaging – (Unless Bulk Packed)

Stocked & Shipped From – LEXINGTON, KY

What is This Part?

This is the Suzuki Samurai Complete Transmission Bearing Rebuild Kit.

Gives you everything you need to complete a rebuild without paying for unnecessary parts.

Includes a new Breather Plug & Back-Up Switch

Also Includes a new Clutch Release Shaft Spring & Bush

You also Get Additional Springs, Keys & Clips

Complete Needle & Roller Bears – with Input Oil Seal & Extension Case

(Japanese Standards Bearings) Made by FAG / NMK / Suzuki Japan / SKF

Direct Replacement

What Will I Receive?

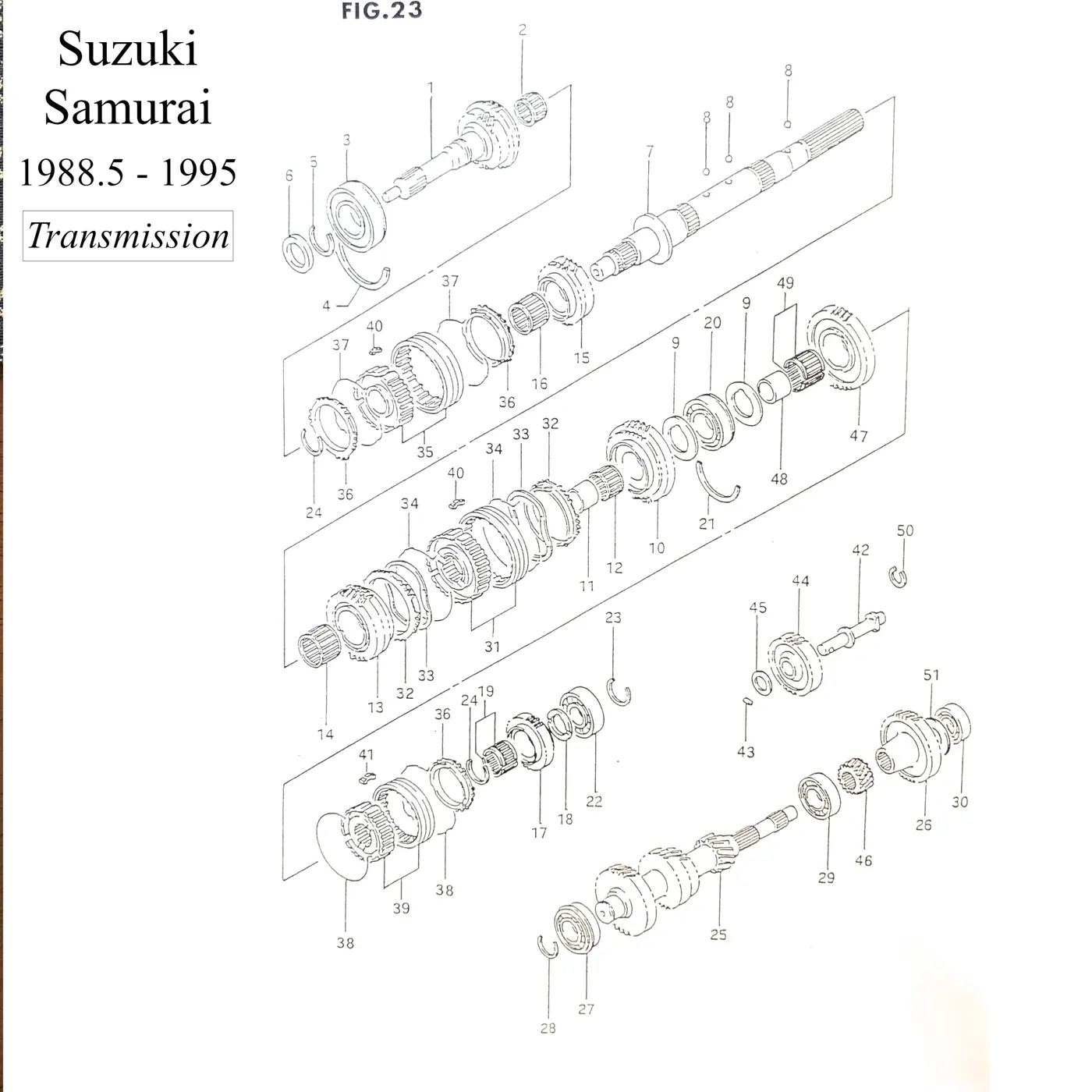

Qty 1 – Roller Bearing #3

Qty 1 – Roller Bearing #20

Qty 1 – Roller Bearing #22

Qty 1 – Roller Bearing #27

Qty 1 – Roller Bearing #29

Qty 1 – Roller Bearing #30

Qty 1 – Needle Bearing #2

Qty 1 – Needle Bearing #12

Qty 1 – Needle Bearing #14

Qty 1 – Needle Bearing #16

Qty 1 – Needle Bearing #19

Qty 1 – Needle Bearing #49

Qty 1 – Oil Seal – Input Shaft #6

Qty 1 – Oil Seal – Extension Case (On Case Diagram – Not Shown)

Qty 1 – Bush #11

Qty 1 – Bush #48

Qty 1 – C Clip #4

Qty 1 – Cir-clip #5

Qty 1 – C Clip #21

Qty 1 – Cir-clip #23

Qty 2 – Cir-clip #24

Qty 1 – Cir-clip #28

Qty 1 – Spring, Low #34

Qty 1 – Spring, High #37

Qty 1 – Key #40

Qty 1 – Pin #43

Qty 1 – Breather Plug (On Case Diagram – Not Shown)

Qty 4 – Case Pins (On Case Diagram – Not Shown)

Qty 1 – Back-Up Switch (On Case Diagram – Not Shown)

Qty 1 – Spring,Clutch Release Shaft (On Case Diagram – Not Shown)

Qty 1 – Bush,Clutch Release Shaft (On Case Diagram – Not Shown)

What Vehicle Will This Fit?

Suzuki Samurai 1988.5 – 1995 All Models
