TRANSMISSION SHIFTER / TRANSFER CASE SHIFTER REPAIR KIT – SAMURAI ’90-’95

General Information

NEW in the Original Packaging

Stocked & Shipped From – LEXINGTON, KY

What is This Part?

This is the Complete Transmission and Transfer Case Shifter Repair Kit for 90′-95′ model Samurai™s that use the larger 12mm Locating Bolt.

This kit addresses all the common problems that cause the shift levers to bind or drag.

This is the only kit that repairs all aspects of the Transfer Case shifting mechanism.

Repairs both the Transmission and Transfer Case Shift Levers.

Don’t play hit or miss with your shifter problems. Get this kit and fix the problem the first time.

Direct Replacement

What Will I Receive?

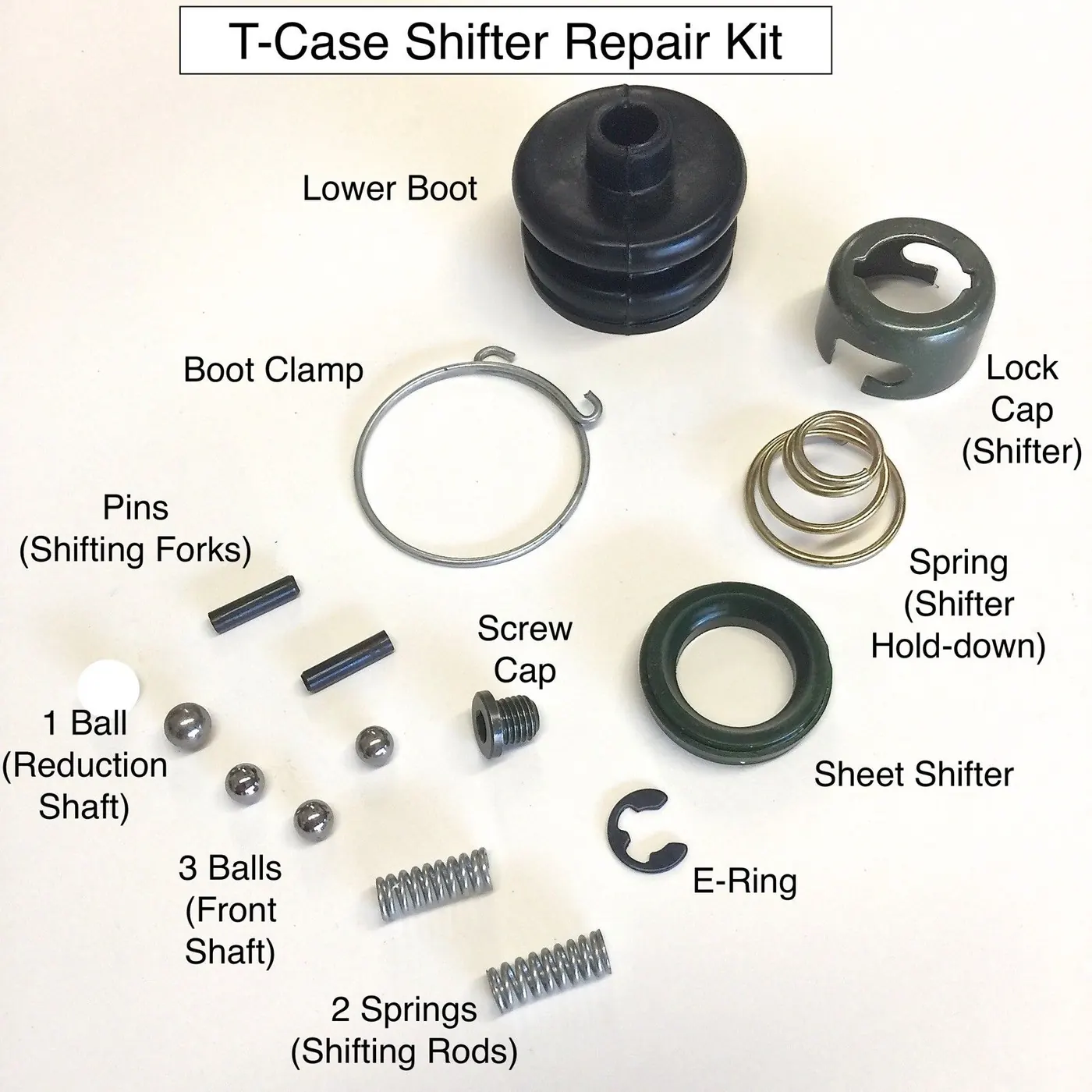

FOR – TRANSFER CASE

To Repair Shifting Rods / Shafts

Qty 1 – E-Ring

Qty 1 – Spring Pin, Front Drive Fork

Qty 1 – Spring Pin, Reduction Fork

Qty 3 – Ball, Shaft (Reduction & Front Drive)

Qty 1 – Ball, Shaft (Front Drive)

Qty 2 – Spring, Shaft (Reduction & Front Drive)

Qty 1 – Screw, (Spring Cap)

To Repair Shift Lever

Qty 1 – Sheet Shifter

Qty 1 – Spring, Shift Lever

Qty 1 – Boot #2, Shift Lever

Qty 1 – Clamp, Boot #2

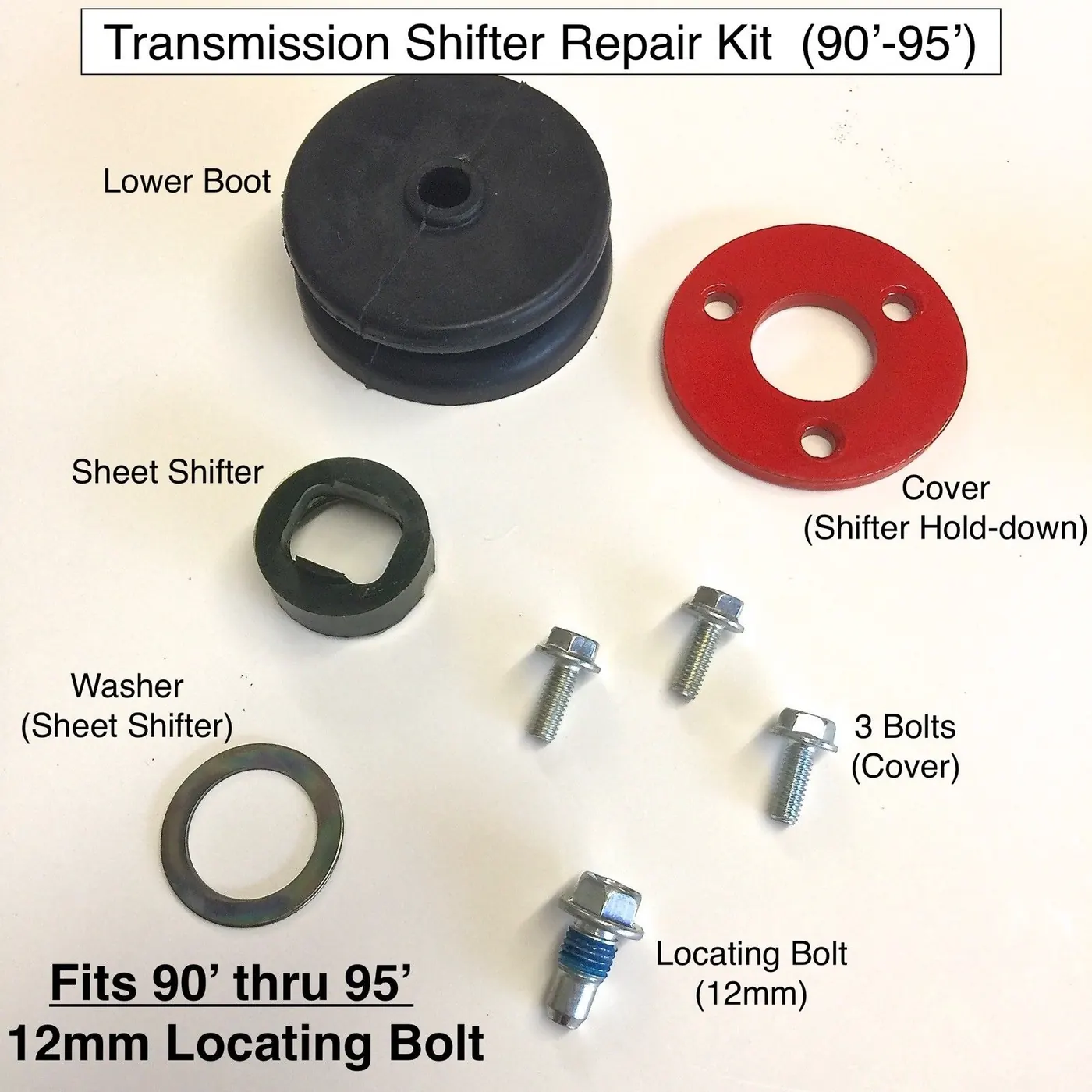

FOR – TRANSMISSION

To Repair Shift Lever

Qty 1 – Cover, Lever Case

Qty 1 – Washer, Shift Lever

Qty 1 – Bush, Shift Lever

Qty 1 – Boot #2, Shift Lever

Qty 3 – Bolts for Cover

Qty 1 – Locating Bolt / 12mm

What Vehicle Will This Fit?

Suzuki Samurai 1990 – 1995 (Only models using 12mm locating)

Suzuki SJ413 1990 – 1995 (Only models using 12mm locating)
